고전압 구동 파워 시스템

SPEC

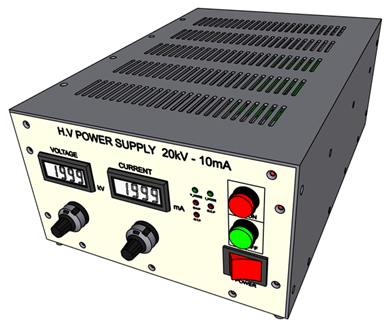

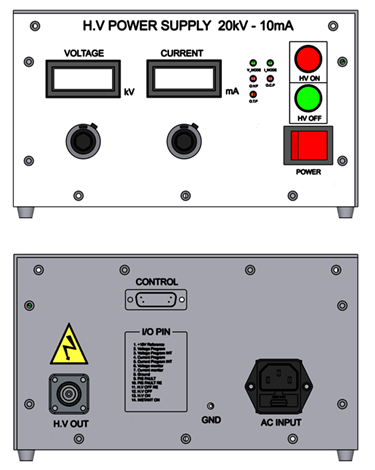

  • EP-200W(20kV-10mA) HIGH VOLTAGE POWER SUPPLY
  • VERY COMPACT and LIGHTWEIGHT
  • LOW EMI and RFI
  • VOLTAGE RANGE 0 to 10kV, POSITIVE
  • SYSTEM STATUS INDICATORS
  • EXTENSIVE ANALOG and DIGITAL INTERFACE
  • ARC QUENCH/ARC COUNT/ARC TRIP
  • OEM CUSTOMIZATION AVAILABLE
  • - INPUT VOLTAGE : AC200V 1Φ ±10% 50/60HZ
  • - VOLTAGE REGULATION
  • LOAD REGULATION : 0.1% of FULL OUTPUT VOLTAGE for a no LOAD to FULL LOAD CHANGE
  • LINE REGULATION : ±0.1% of FULL OUTPUT VOLTAGE MINIMUM INPUT to MAXIMUM INPUT
  • - CURRENT REGULATION
  • LOAD REGULATION : 0.1% of FULL CURRENT
  • LINE REGULATION : 0.1% of FULL CURRENT
  • - RIPPLE : 0.2% P-P of RATED OUTPUT VOLTAGE
  • - POLARITY : POSITIVE or NEGATIVE AVAILABLE
  • - STABILITY : 0.01% PER HOUR AFTER ½HOUR WARM-UP0.02% PER 8 HOURS (TYPICAL)
  • - TEMPERATURE COEFFICIENT : 100PPM PER ℃
  • - AMBIENT TEMPERATURE : 0℃ ~ 40℃ OPERATING , -10℃ ~ 60℃ STORAGE
  • - METERING : DIGITAL VOLTAGE and CURRENT METER 3½DIGIT 1% ACCURACY
  • - DIMENSION & WEIGHT : 222(W) x 324(D) x 125(H)mm & 5.5kg
